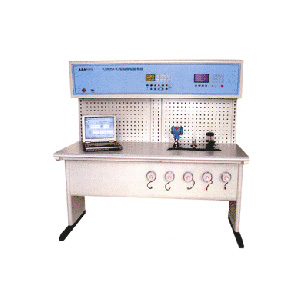

100 - B pressure meter automatic calibration system
Browse:
Add Time: 2016-08-18 16:47:03
Recommendation:
100 - B pressure meter automatic calibration system的产品详细介绍:
The performance characteristics of
lowVolume range wide: built-in removable pressure modules covering the whole range, convenient periodic verification.
lowThe operation is simple: by panel keyboard Settings, automatic required pressure value, without all the PC, such as process operation.

Low friendly interface: large screen LCD and Chinese menu, self-study type operating hints, without reference manual.

Low mesa clean job: using gas and water can do pressure transmission medium and automatic recovery is water inside inspection table, achieve clean oil free checking.
Automatic storage, low functional: check parameters according to the need to download from the host PC calibration data, print the test report.

Low stability: pressure system for the original import, no leakage, good stability, high reliability.



Typical application
Low calibrated pressure gauge, pressure transmitter, pointer pressure gauge, differential pressure transmitter, pressure switch, etc. The primary and secondary instrument, a standard pressure calibration system is equivalent to a modern laboratory.


Selection table
According to human body engineering design of table structure, metal structure, partition to disassembly, transportation is convenient.
Low profile size 1480 * 800 * 800 (mm)

Technical indicators
100 - B series high precision digital pressure moduleMeasuring rangePrecision (level)The power output of 24 v, 50 ma

Current 0 ~ 21.000 mA

-10~0~10Kpa0.05
-95~0~100Kpa
0 ~600Kpa
0 ~6Mpa
0 ~60Mpa

Display and measurement technology
lowOutput power: DC24V 50 ma
lowCurrent measurements:0 ~21.000mA 0.05%F.S
lowLiquid crystal display: 240 * 128 dot matrix

Other options
lowComputer hardware configuration:
1 PC: lenovo P4 - more than 2.0 G, 256 m, 40 G, optical drive, floppy drive, 17 "colorful display.
2. The notebook, IBM, P4 1.7 G, 256 m above, 20 G, drive, U disk, 14.1 "the vera.ttf.
3. The printer: HP color inkjet or samsung laser printers.
lowSoftware configuration: inspection report print driver.
