Product overview

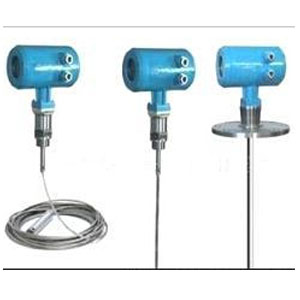

SYLW3X series of guided wave radar level instrument is the use of microwave technology to detect the level of high-tech products, the material level measuring instrument using microwave has good penetrability, the characteristics of bad environment and the measured material adaptability, using large scale integrated circuit is advanced in the world, using the principle of radar, digital signal processing technology and fast Fourier transform (FFT) technology. The utility model can measure the liquid and solid (bulk, powder) material level with continuous measurement, and has the characteristics of distance measurement (35 meters) and high precision.
SYLW3X series guided wave radar level meter has the advantages of low maintenance, high performance, high precision, high reliability, long service life and so on. In contact with the capacitor, hammer etc. instrument comparison superiority There is nothing comparable to this. Microwave signal transmission is not affected by the atmosphere, so it can meet the process of volatile gases, high temperature, high pressure, steam, vacuum and high dust and other harsh environmental requirements.
The product is suitable for high temperature (350 degrees C), high pressure, vacuum, steam, high dust and volatile gases and other harsh environment. Continuous measurement of different material level. The main technical index of the instrument to or better than the similar products at home and abroad, and convenient installation and debugging, you can use a single, can also use the network, can be widely used in metallurgy, building materials, energy, petrochemical, water, food and other industries.
Main technical parameters
Working frequency: 100MHz-1.8GHz.
By measuring range: cable type: 0-35m rod, coaxial type: 0-6m
I repeat: ± 3mm
Resolution: 1mm.
By sampling: echo sampling 54 /s
* response speed: >0.2S (according to the specific circumstances)
* precision: <0.1%
Output current signal: 4-20mA.
Communication interface: HART communication protocol.
Process connection: G1-1/2 *, DN50, DN80, G3/4 flange: DN100, DN150
Process pressure: -1 ~ 60bar.
* power supply: 24VDC (± 10%) ripple voltage: 1Vpp
Power consumption: max22.5mA.
* environmental conditions: temperature: -40 to +250 DEG C
Shell protection grade: IP68.
Explosion proof grade: EXiaIICT6.
* two wire connection: common instrument power supply and signal output to a two core cable
* cable entrance: M20× 1.5 (cable diameter 5 ~ 9mm)
