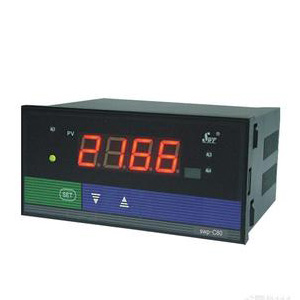

SWP - RP series frequency/tachometer
Browse:
Add Time: 2016-08-18 16:55:51
Recommendation:
SWP - RP series frequency/tachometer的产品详细介绍:

Product description:
SWP series intelligent frequency/tachometer for various frequency/speed measurement and control.
SWP series intelligent frequency/speed display control apparatus integrating digital measurement display and simulation, using digital LED display, can display various kinds of frequency/speed of real value.
One, the main characteristics
1, high brightness LED digital display measuring value
2, support for multiple network communication, communication protocol can be arbitrary set freely
3, unique full set open user interface
Zero and gain setting
Output mode setting
Alarm mode setting
4, power cuts permanent set parameters and parameter password lock
5, ac-dc switch power supply
Second, SWP - RP series frequency/speed meter spectrum chart

Type no.
code
Said Ming
SWP-RP-
Twenty - and - twenty - twentySWP series tachometer
The traits
CS








Horizontal instrumentVertical type instrument
Overall dimensions
489







96×48mm,48×96mm160×80mm,80×160mm96×96mm
Control action
0103






Measurement according toThe three control
Communication methods
0248





There is no communicationThe communication protocol of RS - 232The communication protocol of RS - 422The communication protocol of RS - 485
Output way
01234567




No control outputRelay contactCurrent 4 ~ 20 maThe current 0 ~ 10 ma,1 ~ 5 v voltage0 ~ 5 v voltageSCR - zero passage trigger pulseSSR - solid state relay
Input type
-




A: open collector signal input (OC)B: emitter signal input (OE) door openC: level signal inputD: switch input/contact signal (passive)E: current-mode signal input
The first alarm way
NHL


No alarm (can be omitted)AL1 limit alarmAL1 lower limit alarm
The second alarm way
NHL

No alarm (can be omitted)AL1 limit alarmAL1 lower limit alarm
Display mode and the feed output
N0.8P
LED display 0.56 inches (omitted)0.8 inch LED display24 v DC feeder output
The power supply mode
WT  DC24V power supplyAC90 ~ 260 v power supply, switching power supply)AC220V power supply

U C and E above two types of input user when placing order, please provide the input signal amplitude.Such as current signal input, to provide the input signal is the low what is ma, how much is the input signal is the high ma.
Note: when ordering tachometer please provide the technical index of the speed sensor.
