Product description:
Sketch

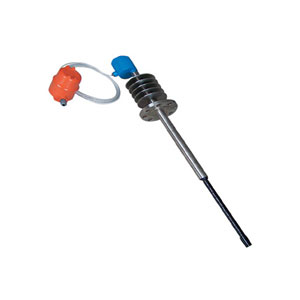

The high temperature level meter of SY-CDQLS-23002 type primary dust remover can be used to measure the material level in many occasions. The instrument adopts the rod sensing element, the whole measuring probe is made of special material, and the temperature is up to 1100 degrees centigrade. The utility model can be used for the measurement of the material level in various bad occasions. Typical examples of application is a dust remover dry material level measurement.
The material level meter is composed of four parts: detecting circuit, measuring probe, connecting cable and mounting flange.
measuring principle
The measuring probe is mounted on the wall of the silo, probe and silo wall relative to form a capacitance field. The probe is positive and the wall is negative. The level change on the capacity of the production increase or decrease in diode. When the material reaches the position of the probe, the capacitance is the maximum value, and the relay action in the detection circuit outputs a switch signal, indicating the position of the position of the material.
Main technical index
* application: liquid, powder, high temperature ash material
* probe temperature: 1100 degrees ≤
* power supply: 220VAC 50/60Hz or 24VDC (optional)
Output: relay 3A250V/50Hz.
This delay time: 0-18 seconds adjustable
Connecting cable: 3M ~ 10m.
* electrostatic spark protection: special anti-static function
* shell protection: IP67 standard
