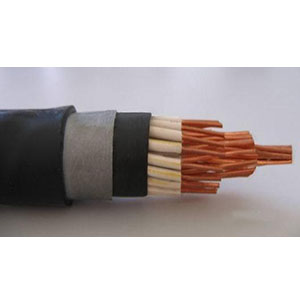

Flame-retardant control cable的产品详细介绍：
Product description: |
| PVC insulated control cable including 0.6/1 kvProduct standards:This product according to GB9330 "plastic insulated control cable, IEC60227" rated voltage up to and including 450/750 PVC insulated cable "and" the rated voltage 1 to 30 kv insulated power cables and accessories, such as standard.Cable type: rated voltage Uo/v U is 450/750 or 450/750 kvZR-KVVZR-KVVPZR-KVVP2ZR-KVV22ZR-KVV32ZR-KVVRZR-KVVRPZR-KVVP-22ZR-KVVP2-22ZR-KYJV32ZR-KYJV92ZR-NHKYJV32/92Scope of rated voltage Uo/v U is 450/750 or 450/750 kv:PVC insulated PVC sheathed control cable is suitable for rated voltage up to and including 450/750 to and including 450/750v or 0.6/1 kv control, signal, protection and measuring system.Using features:Low rated power-frequency voltage up to Uo/v U is 450/750 or 450/750 kv.Low cable conductors allow long the highest working temperature is 70 ℃.Low when the ambient temperature under installation should not below 0 ℃, if the ambient temperature is lower than 0 ℃, deal with cable preheated.When the permissible bending radius of the cable is as follows:Without armored cable should be not less than 6 times of cable diameter;Armoured or copper tape screened cable should be not less than 12 times of cable diameter; Shielding flexible cable, not less than 6 times of cable diameter. |
