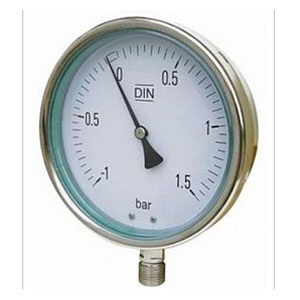

YZ pressure vacuum gauge的产品详细介绍：
Product description: |
An overview of the This series of pressure gauges are widely used to transport gas, liquid pipes and containers of measuring no explosion danger, no crystals, not solidified body and corrode the metal liquid, gas, steam, etc. The pressure of medium size.With small volume, safe and reliable performance and shows the advantages of clear. 2, model named  3, technical parameters Product modelY-60YZ-60Z-60Y-100YZ-100Z-100Y-150YZ-150Z-150Y-200Nominal diameter (mm)Phi 60Phi 100Phi 150Phi 200Joint threadM14x1.5M20x1.5Precision grade2.51.0 1.5Measuring range (MPa)Y0-0.1;0-0.16;0-0.25;0-0.4;0-0.6;0 and 1;0-1.6;0-2.5;0 to 4;0 to 6;0 to 10;0 to 16;0 to 25;0 to 40;0-60YZ- 0.1-0.06;- 0.1-0.15;- 0.1-0.3;- 0.1-0.5;- 0.1-0.9;- 0.1-1.5;- 0.1-2.4Z- 0.1-0Using the environment conditionsTemperature - 40-70 ℃;Relative humidity of 85% or less |
